Build Diary 27/28-December-05

Previous page - HomePage - BuildDiaryIndex - Next page.

Christmas is over, and Jo has got me lots of bits for my RV project and some tools - she is great. Topcoat painted the instrument sub-panel, panel brace and started to rivet it into place.

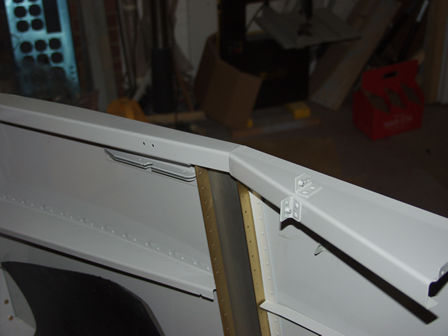

Pleased with the topcoat painting the fuse side rails.

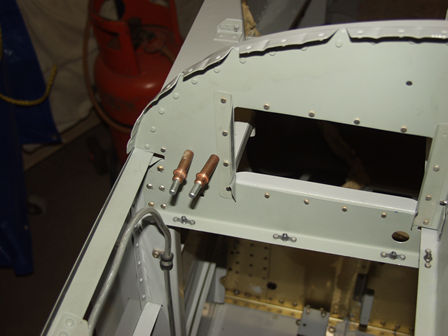

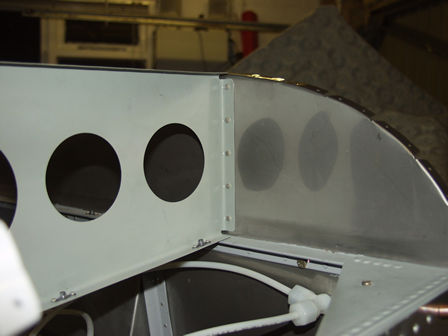

Riveting the instrument sub-panel.

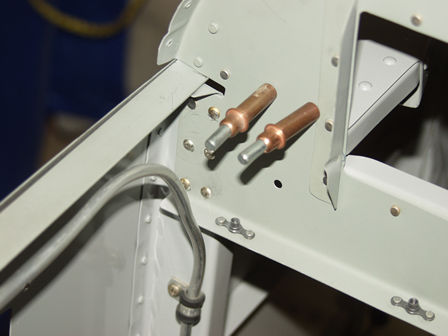

These rivets went in very well considering the position they are in.

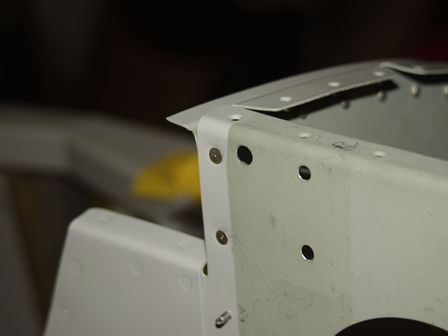

Two flush rivets bu the canopy hinge.

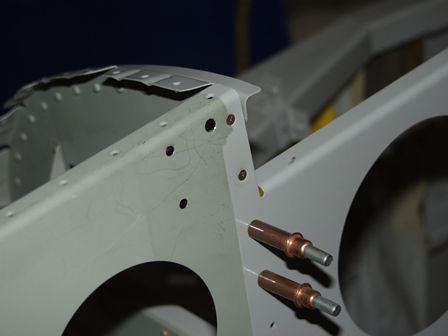

Instrument brace to firewall rivets.

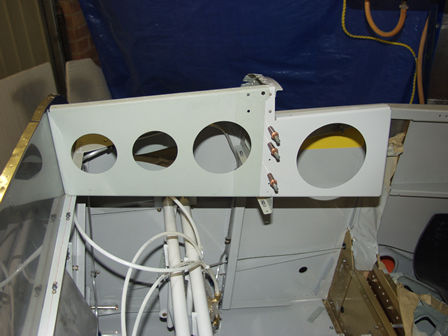

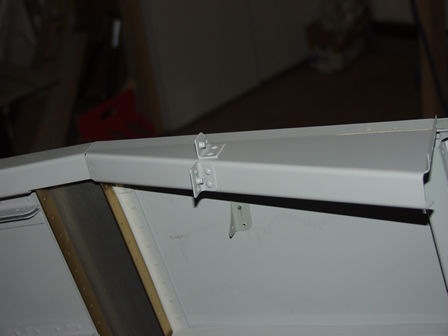

Instrument panel brace to firewall rivets.

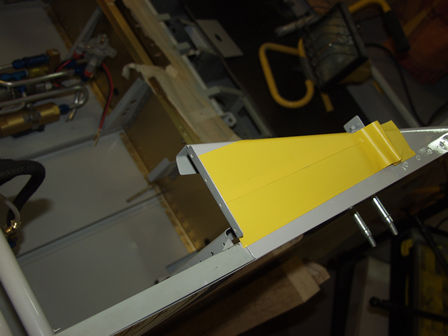

I fitted this tape to protect the paint from the bucking bar and rivet gun.

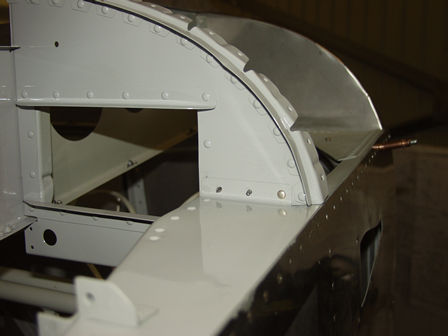

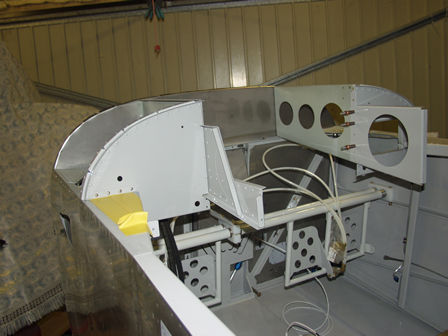

One half of the instrument sub-panel fitted.

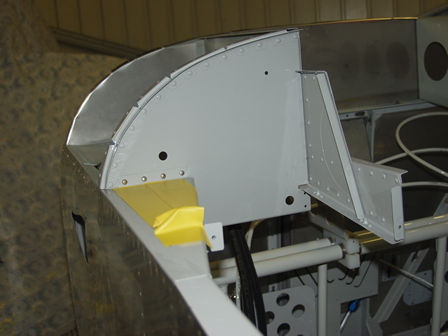

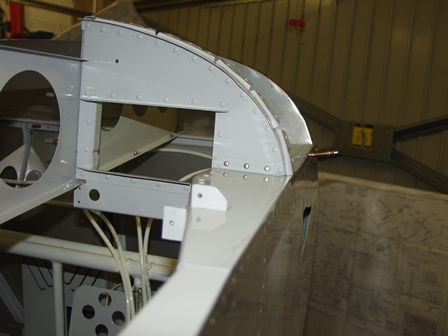

Second side fitted.
