Build Diary 22-June-05

Previous page - HomePage - BuildDiaryIndex - Next page.

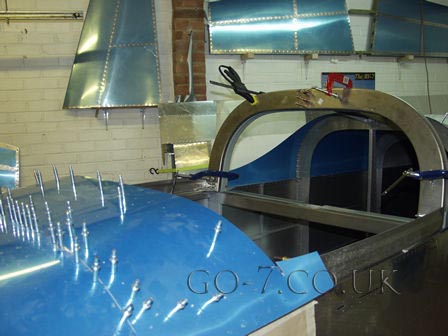

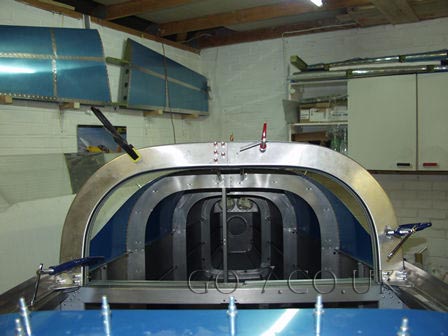

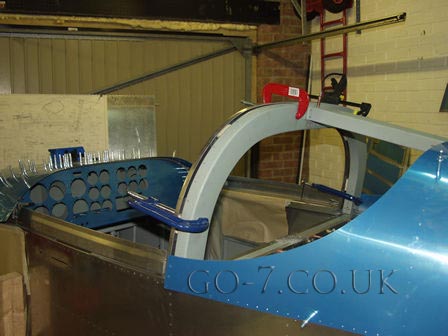

Continued work on the canopy - Fitted canopy side rails.

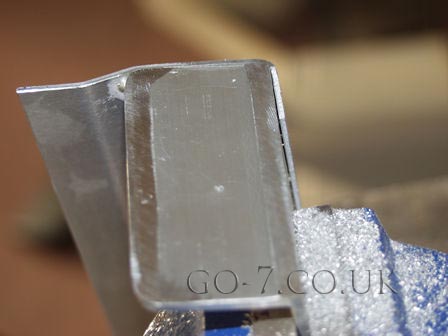

Smoothing ridges from the top and bottom of the canopy side rail angle.

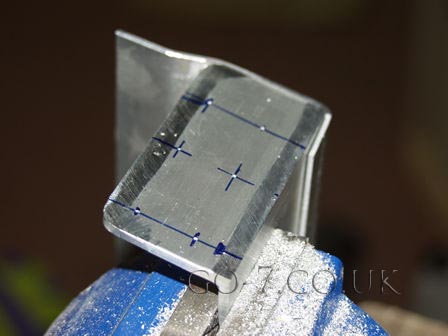

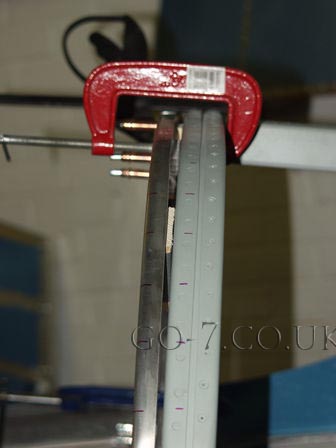

Marking the rivet and rear catch positions.

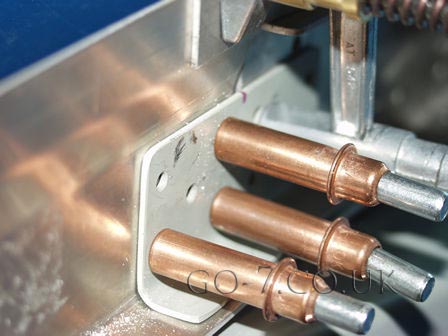

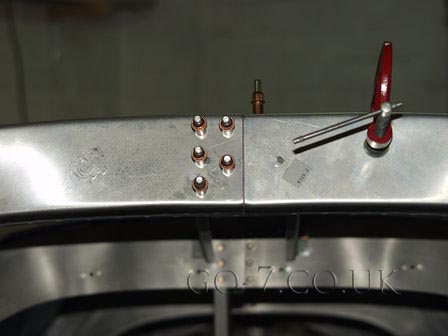

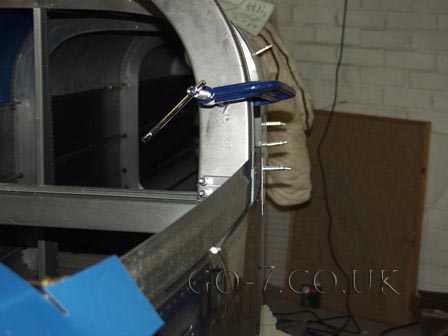

I first drilled #40 in the angle, then attached to the rear hoop. I will then match drill them together to #30 for AD4 rivets

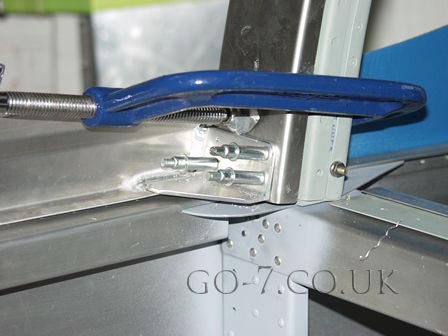

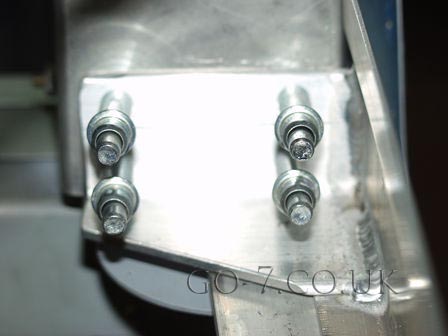

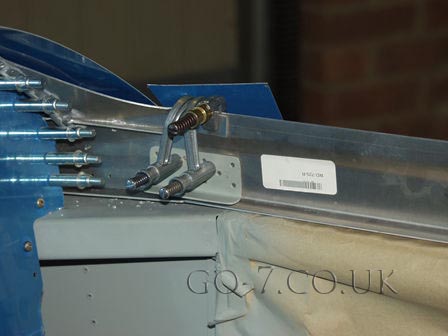

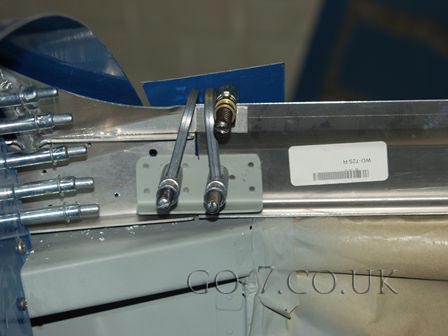

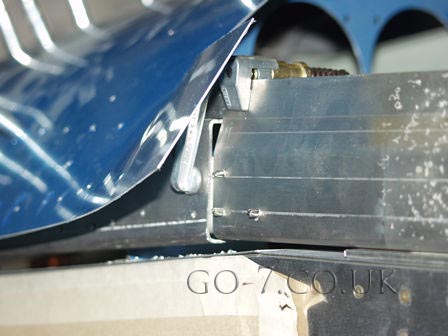

The side rail to front section canopy attachment plate. After checking alignment I attached it ro the side rail first, as it must sit snug the the bottom of the rail.
