Build Diary 22-May-05


Continued progess with fitting VS, finished fitting tail wheel bracket and VS.

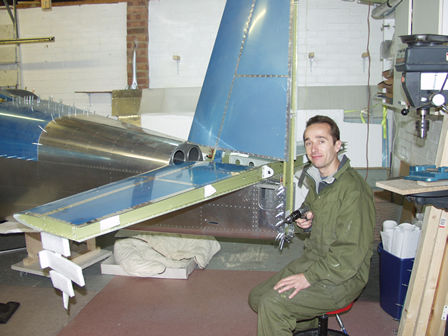

Jo came out this afternoon and took some pictures of me working, just before I went to see John - he had a squezzer with a slimmer profile for some dificult rivets.

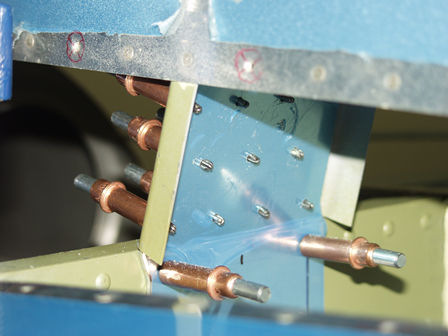

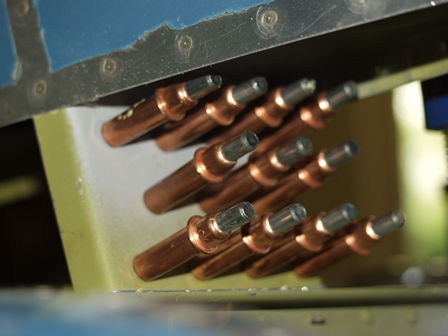

Front mount for VS. Before drilling VS to HS bolt holes to size.
VS mount viewed from the front.

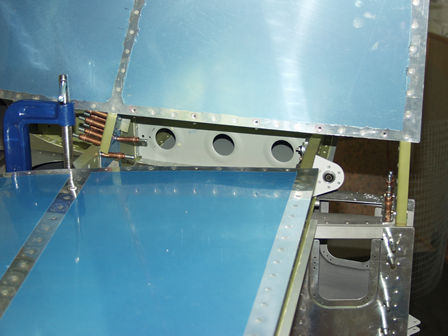

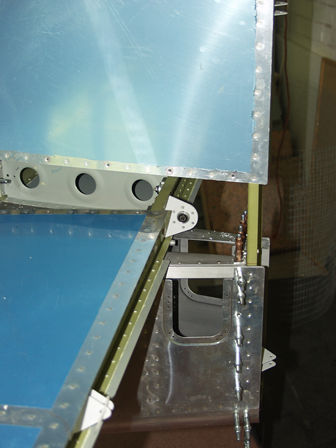

Rear VS mount & elevator rear stop.

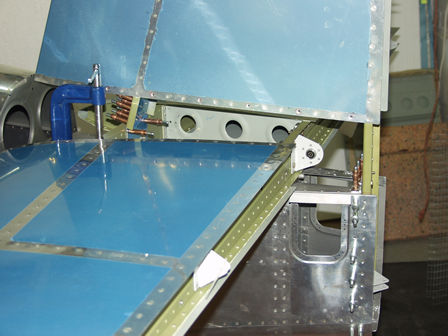

Elevator rear stop and VS mount.

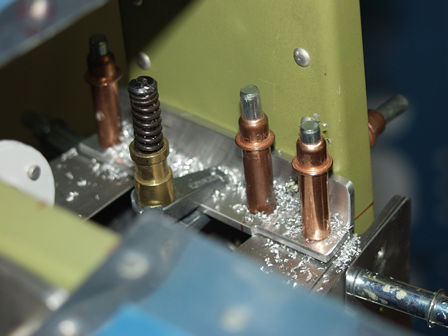

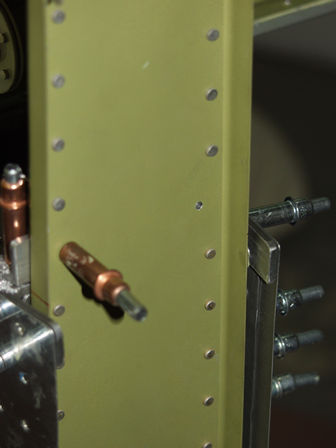

VS rear mount bolt holes before drilling to size.

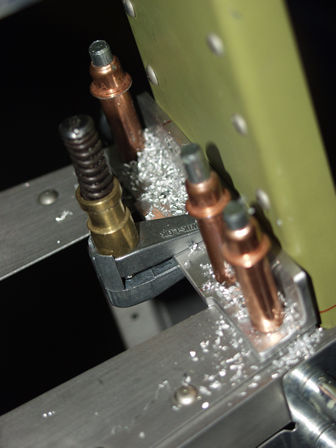

After alingment and pilot holes I am now drilling to size.

My brother and his wife bought me the chair on wheels - it has a try underneath - very handy working at this height.

Jo is still taking pictures....
