Build Diary 22-Febuary-06

I spent this week working on the wiring.

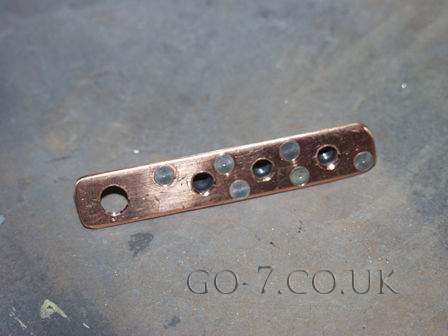

Here I have created an earth block with nutplates.

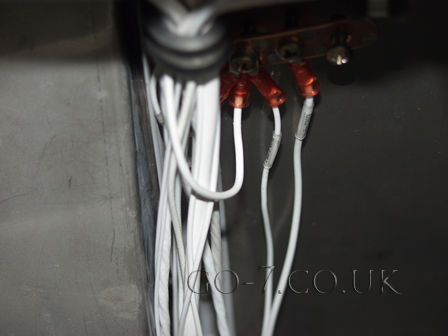

The earth block is bolted to the firewall on the reverse of the bolt that holds the earth (Ground)lead connection to the battery. This should be a really good ground connection.

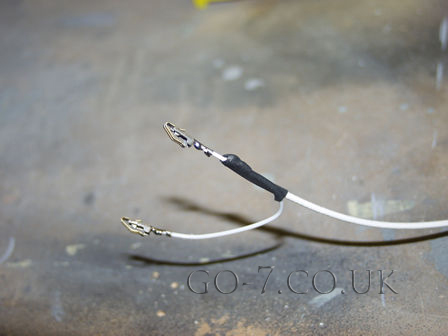

The connectors for the ICOM A200. They are VERY small, so it is not possible to connect more than one wire into the connector. Therefore any multiple connections have to be done out of the connector.
