Build Diary 11-June-06

Removed the engine baffles and completed a few jobs on them - nutplates for ignition lead grommets & cut blast tube holes for mag's and alternator. Stripped baffles off and started painting them.

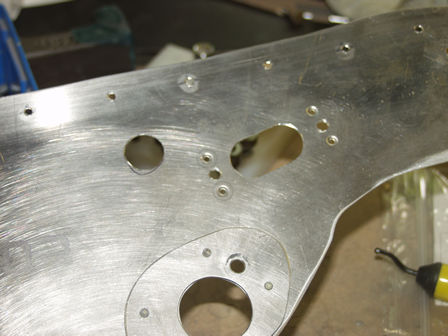

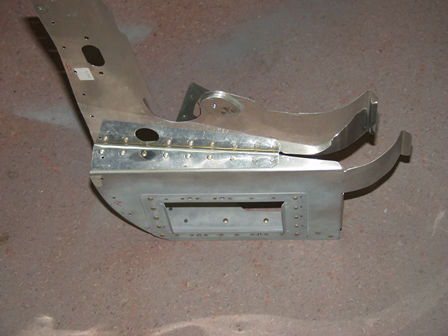

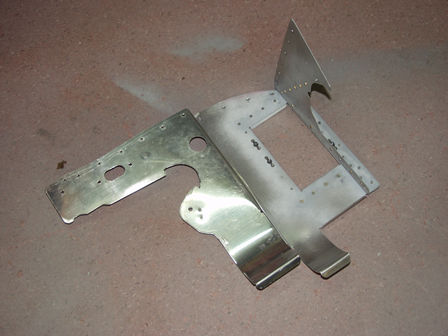

Nutplate holes drilled for ignition lead grommets, and magneto blast tube hole.

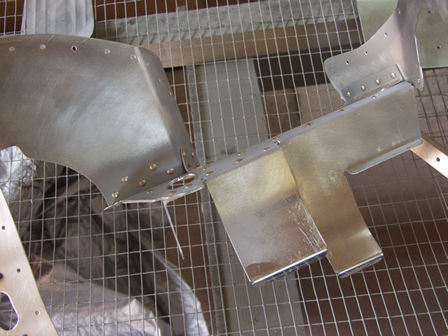

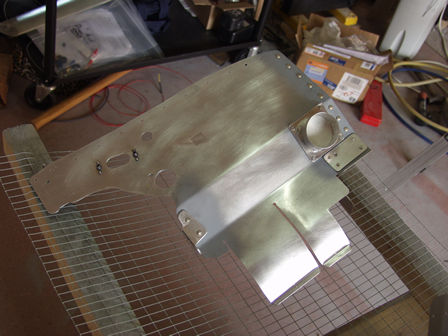

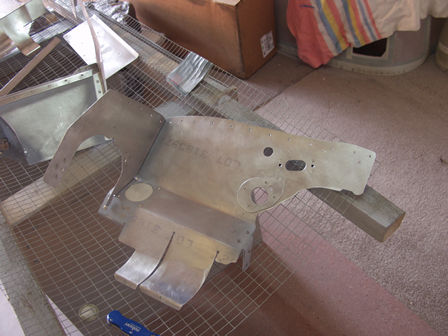

Left rear baffle. Cutout for ignition leads and magneto blast tube hole.

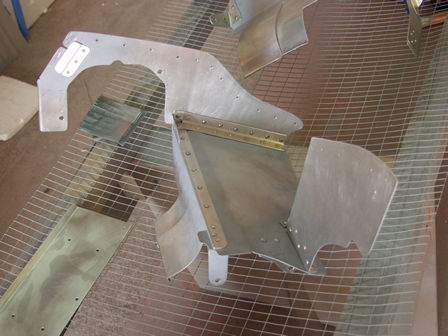

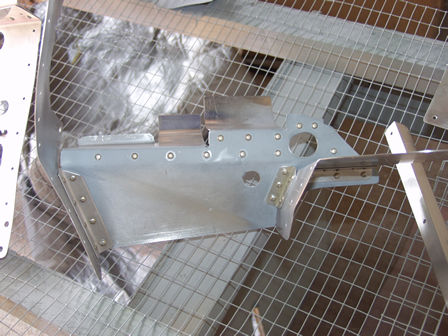

Right front baffle.

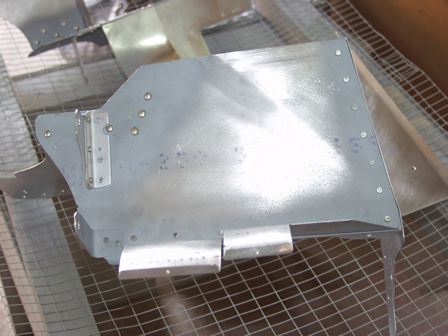

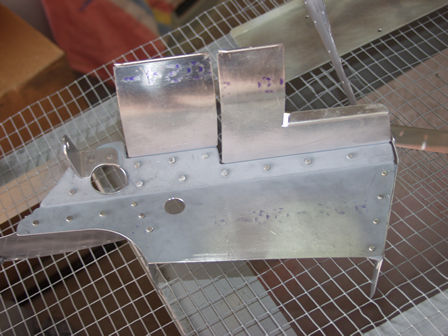

Left Frount Baffle.

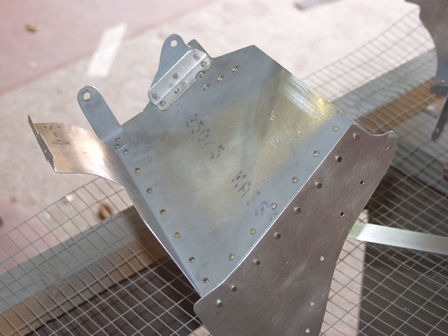

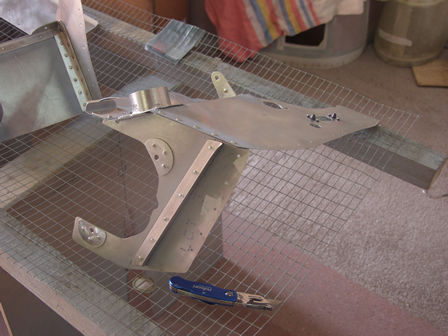

Right rear baffle.

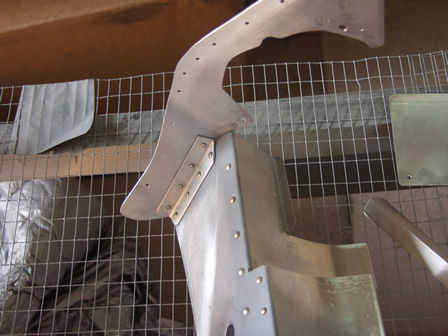

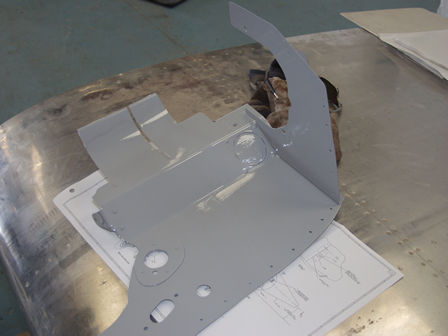

Right rear baffle painted ready to refit. Still needs cowl seal fitting.

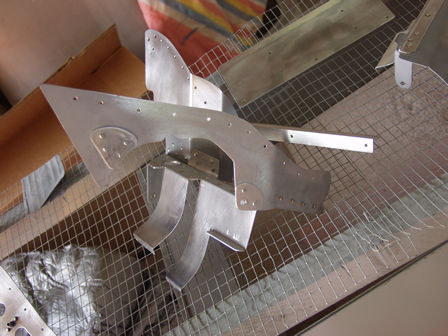

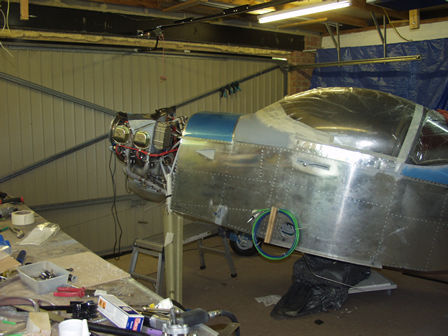

Rear baffles refitted.
