Fitting a Dynon D100 to the RV7 - AOA probe.
The Dynon D100 also has the optional AOA probe, here I have connected it using the Gretz mount and the SafeAir1 pitot/AOA connection kit.
Test Flight with Bob Cole at the controls

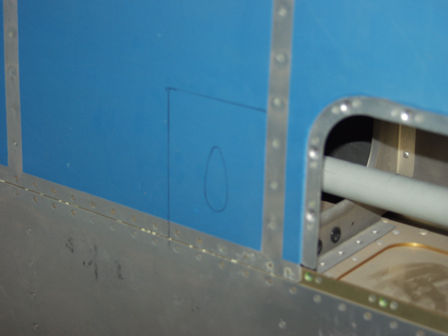

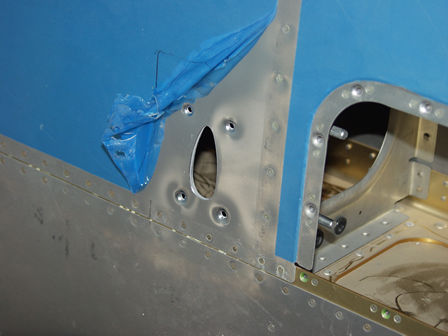

I have positioned the pitot next to the inspection panel.
Test Flight with Bob Cole at the controls

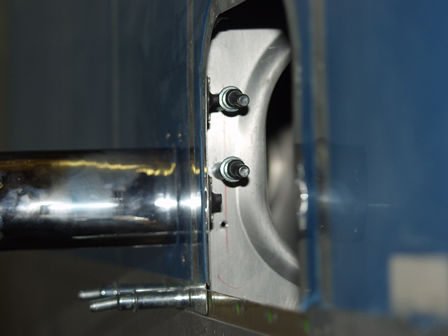

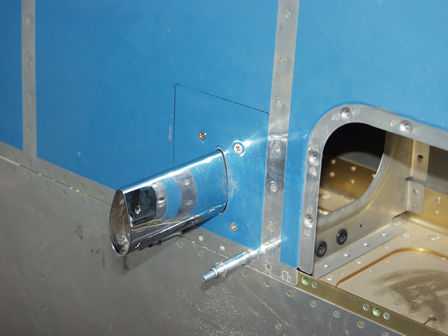

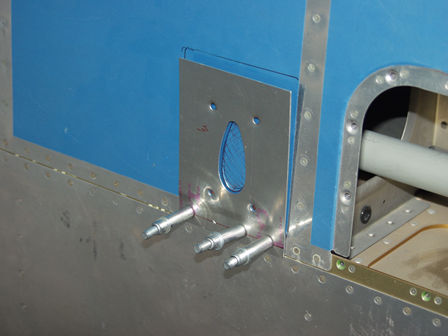

This is the Gretz Pitot mount, that the Dynon pitot tube fits to.
Test Flight with Bob Cole at the controls
This shows the changes needed to the panel brace.
Test Flight with Bob Cole at the controls
Modifying the instrument panel brace.
Empannage Fitting
.
Test Flight with Bob Cole at the controls

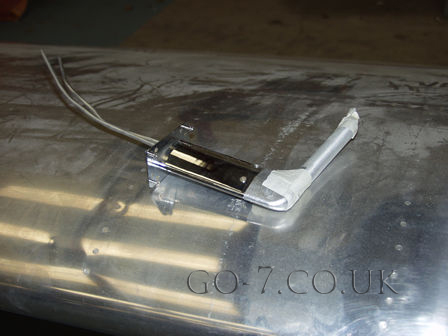

The pitot tube fitted to the Gretz mount.
Test Flight with Bob Cole at the controls

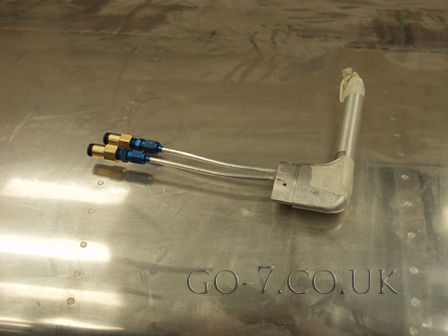

I have connected the pitot tube to the instrumentation with the SafeAir1, AOA/pitot kit..
Test Flight with Bob Cole at the controls

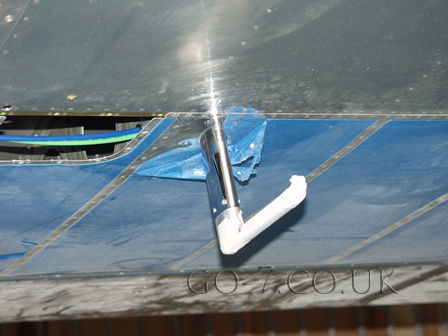

Probe fitted to wing. The SafeAir1 AOA/pitot tubes can be seen in the inspection panel. they are coloured to identify them.
Empannage Fitting

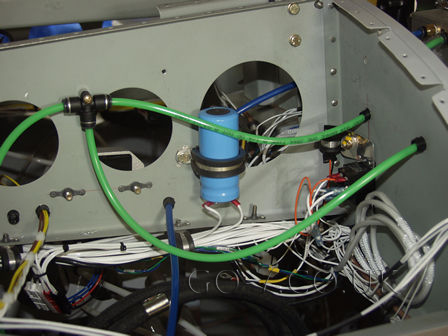

The blue AOA line routes direct to the Dynon. The Green pitot head is split to the Dynon and the backup Air Speed Indicator..
Empannage Fitting

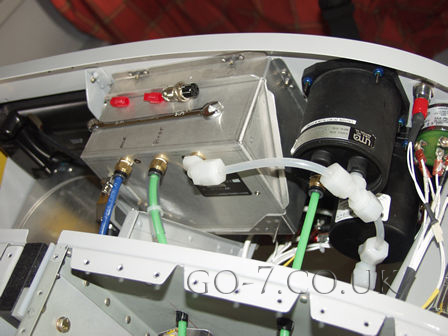

The rear of the Dynon D100, with pitot, AOA and static connections.
