Build Diary 14-June-05

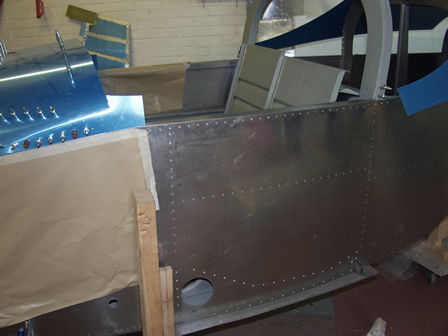

Cut the canopy release hole in the side of the fuse.

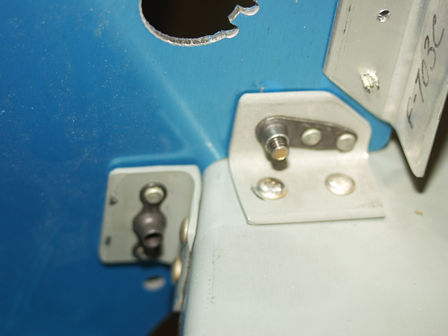

These are the nutplates I got from Robert yesterday, 3hrs flying for 4 nutplates (otherside also), but it was just an excuse to go flying. However it did feel very slow in my 150 after flying around in Roberts RV6!

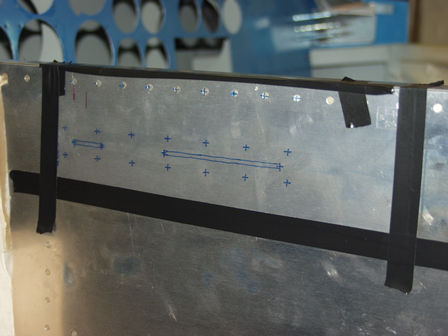

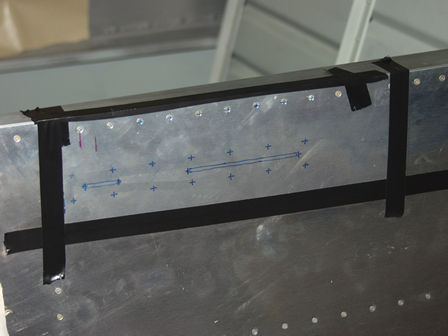

I used some clear plastic to trace the plan details.

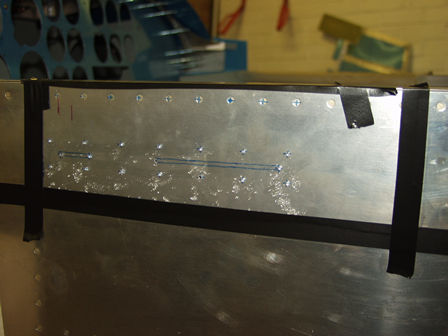

First pilot drilled with #40.

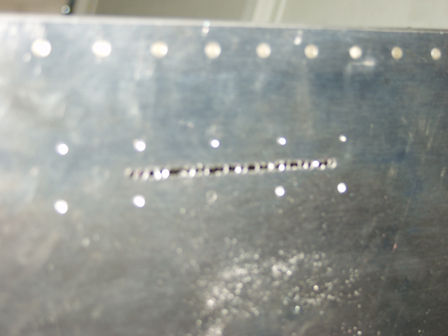

A bad picture, but it's showing the holes I drilled for the slot.

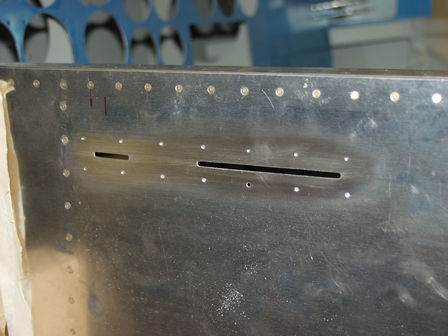

15 minutes with the new small files.... They are slightly undersize, will adjust once the rest of the fittings are ready.
