Build Diary 12/13-June-06

Fitting the spinner to prop & filler plates.

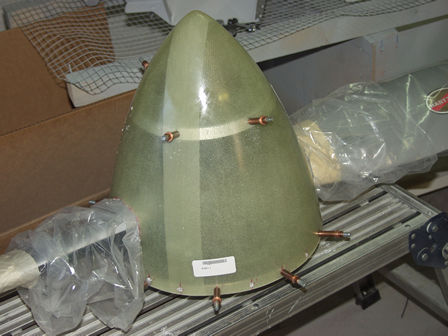

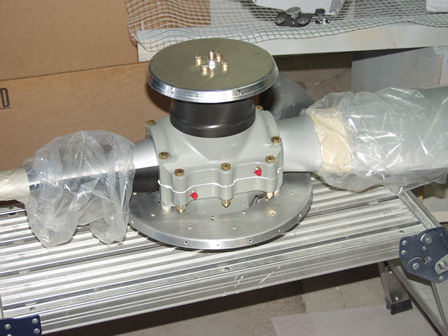

Time to fit the fiberglass spinner to the back (and forward) plate.
I have not made the gaps around the blades tight as space is needed for the blades to rotate. I used production aircraft spinners as a template/pattern.

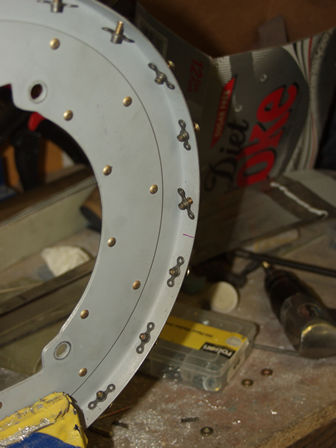

Fitting nutplates around the backplate.

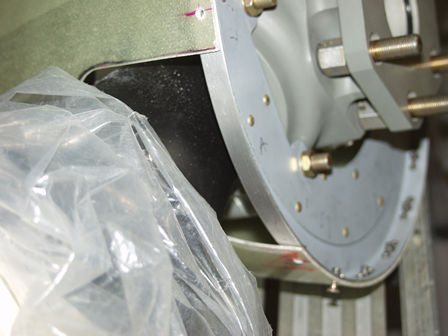

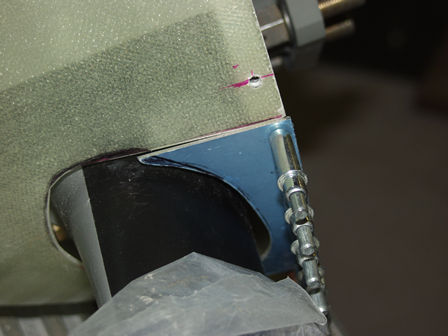

The gap behind the blade needs a filler plate.

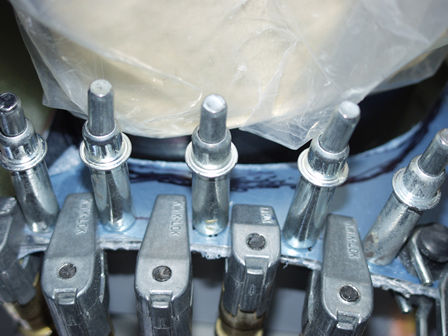

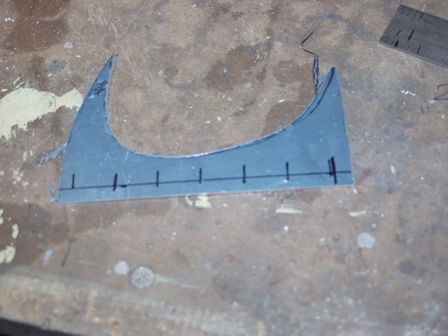

Start of the filler plate.

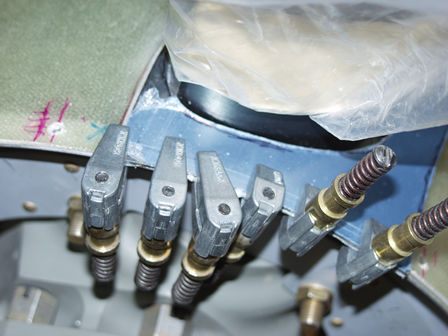

This still needs some trimming around the blade.
