Build Diary 05/06/07-July-06

Previous page - HomePage - BuildDiaryIndex - Next page.

Back from holiday, the project is at the hanger but I still have some jobs to complete at home. I had planned the move to the hanger carefully to ensure I had some jobs I could complete at home.

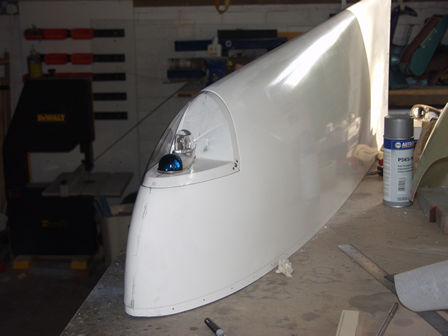

Right wing tip with nav and strobe light fitted. I had to cut lense and fit lamp unit to the wing tip.

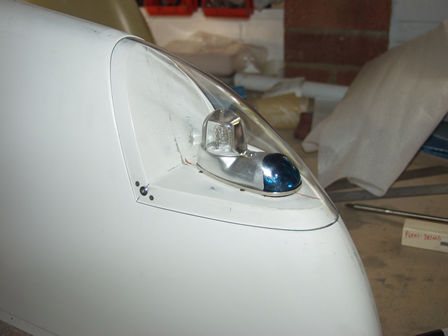

Right wing tip.

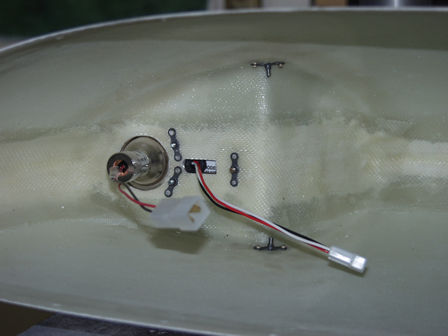

Rear of the strobe/nav light.
I have decided to fit the wing tip with #6 screws as my EZ Pilot servo sits in the end of one wing. It would look odd if one was fitted with rivets and the other screws.

I drilled the wing tip fitted to the wing, as the pilot holes are on the wing. I have used a strip of metal to hold the nut plates and reinforce the fiberglass.

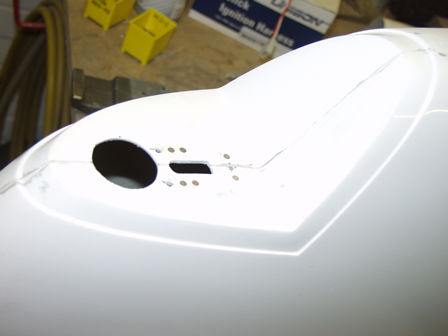

Left wing tip, cutting the holes for the nav/strobe lamps.

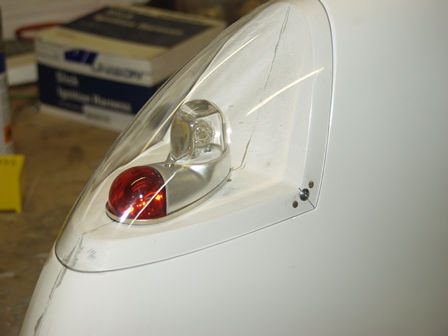

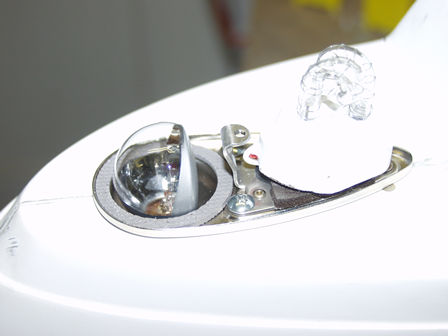

It took a long time to cut/shape the wing lense.

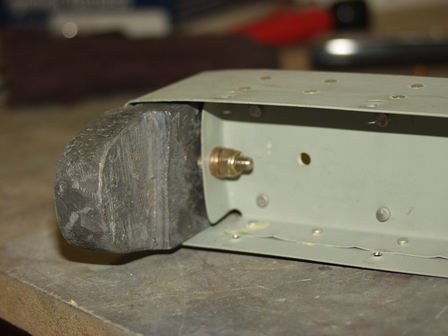

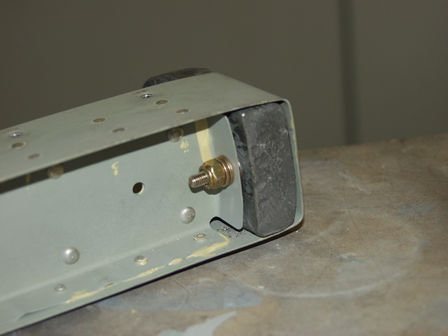

Fitting the mass balance weights on the elevators. I had left them off as it was easire to store the parts with them off. But I lost the bolts and had to order some replacements.
