Build Diary 03-March-06

Testing some of the systems. The pipe arrived (for the fuel injection servo to mechanical pimp) and I fitted it to the the servo to fuel pump.

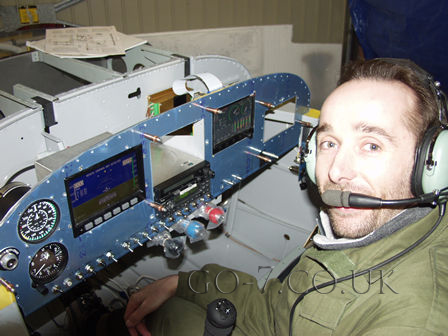

Jo came to visit the project and found me sitting inside testing the electrics.
Slowly coming together!

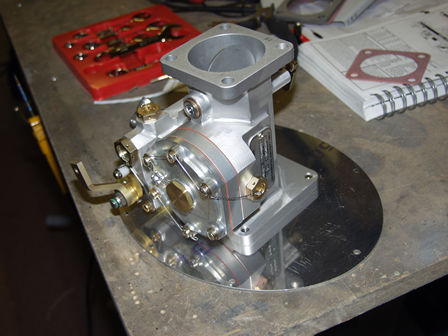

The new fuel injection servo arrived today. It came with the outlet fitted to the front. I moved it to the back.

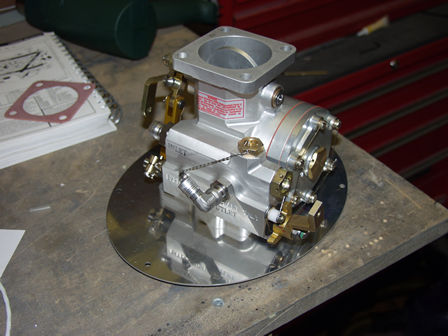

The outlet can be moved to the back of the servo. Shown here with blanking plug fitted.
Fuel pump to servo - silver fire cover fitted. Here you can see the front outlet blanked.

Note: Blank needs to be wire locked.

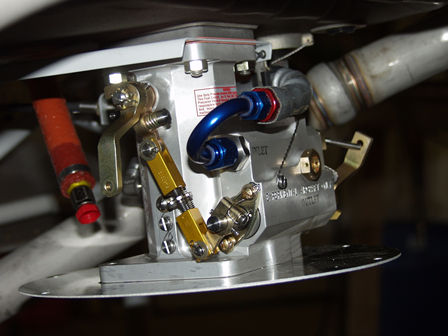

I opted to route the fuel line round the front away from the throttle control, past the mixture control. Not cheap the pipe cost 67.00 from Earls!
