Build Diary 08-March-06

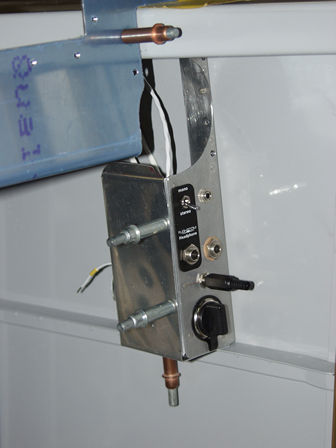

Not feeling very well, but could not resist a little work on the project. So decided to box in the audio connections on the PAX side. I placed them to the side rather than under the panel to keep the wires to the side. The headset connections could have been placed in the rear. But I wanted to keep the cable runs as short as possible, and if the pilot position has a problem it's easy to connect to the PAX position.

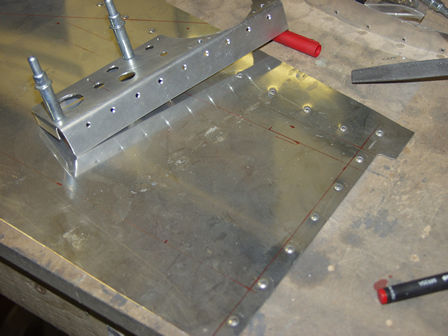

I used an old (scrap) skin to box the audio connections in.
Boxing the connections in not only covers the connections but also stiffens the panel up.
Later I intend to use the side of the box for additional GPS data connections.
