Build Diary 21-March-06

Continued work on baffles - the front inlet is tricky, partly due to the plans are a little sketchy (really they are drawings!) in this area.

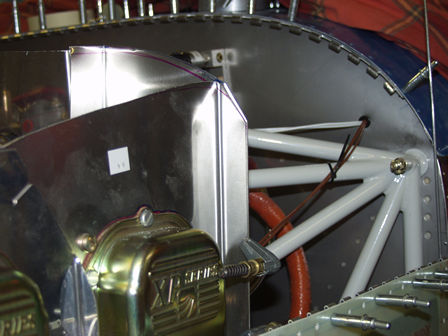

Left lower inlet baffle. Some tricky bends and fitting required - BUT it's not as tight as I first think - see later pictures and comments.

There will be some angle to join these together.

The fit at the front - tight but I discover it does not need to be so tight. See later pictures.

I have already checked the baffle fit around the back of the flywheel.

The oil cooler will fit on the rear baffle.
Oil cooler fits here on the rear baffle. Its a very tight fit.
The oil cooler - Umm looks familiar. Yep same as on my Cessna 150!
