Fitting an Advanced AF-2500 Engine Monitor to Vans RV7 - The Analogue Module.

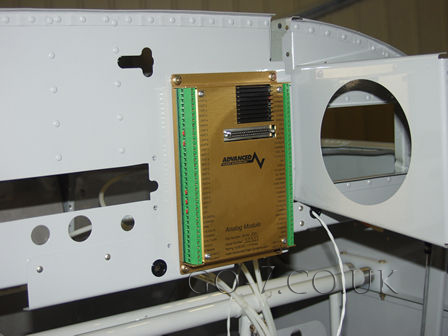

I have placed the Advanced Analogue unit onto the instrument sub-panel.

Test Flight with Bob Cole at the controls

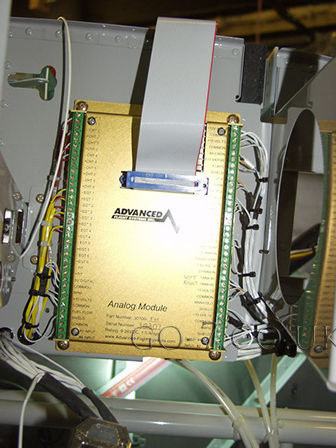

This is the Advance Analogue Module.

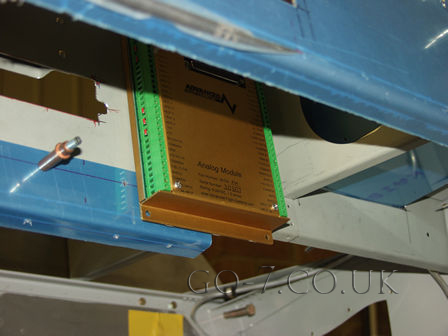

The module is level with the top of the instrument panel brace to insure it cleares the canopy frame.
Test Flight with Bob Cole at the controls

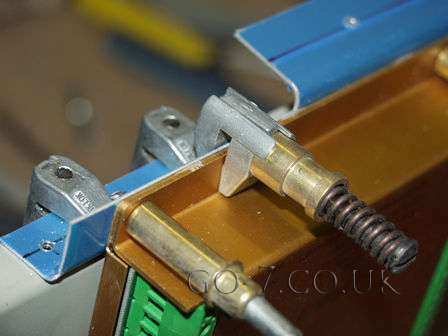

The bottom of the module is secured to the control cable bracket fitted to the subpanel. The right side needs to be fabricated.
Test Flight with Bob Cole at the controls

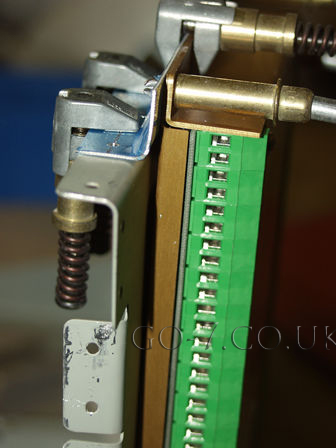

The fabracted bracket needs to align with the cable brace (the cable brace is fitted to the face of the subpanel). The module will sit just off the sub panel.
Test Flight with Bob Cole at the controls

Test Flight with Bob Cole at the controls
